Math Help - Maple help?

  1. #1
    Member
    Joined
    Feb 2008
    Posts
    102

    Maple help?

    Could anyone help me with this problem, which has to be done in Maple.

    The temperature on a metal plate is given by T(x,y) =  4x^2 - 4xy + y^2. An ant walks around the origin along the circle of radius 5 centered at the origin. What are the highest and lowest temperatures encountered by the ant? Plot the temperature function and the points of highest and lowest temperatures together on one plot.

    This is how I started it out, but I have no idea if its going in the right direction.

    with(plots):
    a:= (x,y) -> 4x^2 - 4xy + y^2;
    b:= (x,y) ->  x^2 + y^2 = 25;

    display(a,b);
    And right here it gives me an error saying it can't display the 2 equations.
    Last edited by larson; November 23rd 2008 at 02:50 PM.
    Follow Math Help Forum on Facebook and Google+

  2. #2
    Rhymes with Orange Chris L T521's Avatar
    Joined
    May 2008
    From
    Chicago, IL
    Posts
    2,844
    Thanks
    3
    Quote Originally Posted by larson View Post
    Could anyone help me with this problem, which has to be done in Maple.

    The temperature on a metal plate is given by T(x,y) =  4x^2 - 4xy + y^2. An ant walks around the origin along the circle of radius 5 centered at the origin. What are the highest and lowest temperatures encountered by the ant? Plot the temperature function and the points of highest and lowest temperatures together on one plot.

    This is how I started it out, but I have no idea if its going in the right direction.

    with(plots):
    a:= (x,y) -> 4x^2 - 4xy + y^2;
    b:= (x,y) ->  x^2 + y^2 = 25;

    display(a,b);
    And right here it gives me an error saying it can't display the 2 equations.

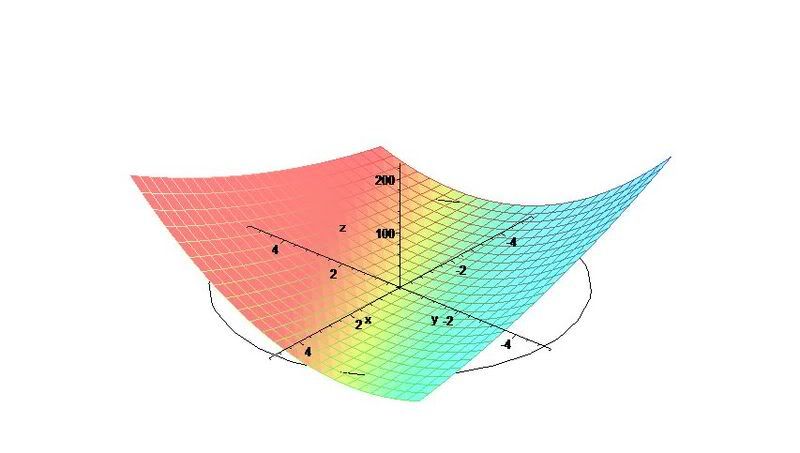

    Here's a plot of the temperature function and the circular region:

    *code used to generate graph*
    Code:
    > with(plots):T := (x,y)-> 4*x^2+4*x*y+y^2:
    > plot1 := implicitplot3d(x^2+y^2=25,x=-5..5,y=-5..5,z=0..0.001):
    > plot2 := plot3d(T(x,y),x=-5..5,y=-5..5,axes=normal,labels=[x,y,z],
      glossiness=0.9,transparency=0.95,lightmodel=light1,style=hidden):
    > plots[display]({plot1,plot2});


    --Chris
