Math Help - Circle Geometry - area of segment.

  1. #1
    Member
    Joined
    Apr 2009
    Posts
    87

    Circle Geometry - area of segment.

    Iam having trouble getting the correct ans of 7.16m
    Attached Thumbnails Attached Thumbnails Circle Geometry - area of segment.-q5-c.pdf
    Follow Math Help Forum on Facebook and Google+

  2. #2
    MHF Contributor
    Prove It's Avatar
    Joined
    Aug 2008
    Posts
    11,490
    Thanks
    1391

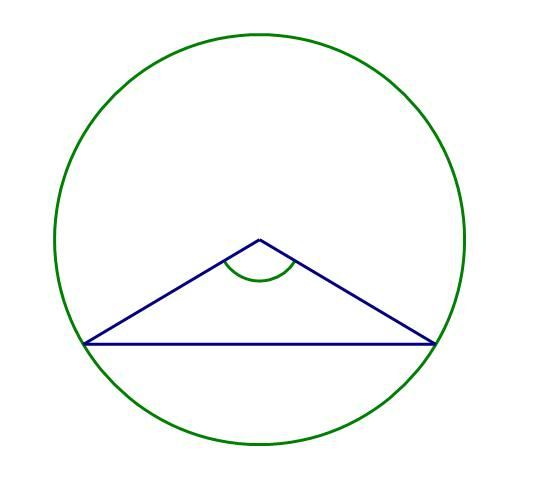

    Here is a picture of the way I would try this problem. I would evaluate the area of the segment, and subtract the area of the triangle. Of course, to do this, you need to know the size of the angle.
    Follow Math Help Forum on Facebook and Google+

  3. #3
    Super Member Quacky's Avatar
    Joined
    Nov 2009
    From
    Windsor, South-East England
    Posts
    901
    With your shorthand notation, I can't even comprehend the question, but why did you use A=\pi~r^2 to find the area of A1? A1 isn't a circle!
    Follow Math Help Forum on Facebook and Google+

  4. #4
    Member
    Joined
    Apr 2009
    Posts
    87
    basically the area i have shaded is 7.87m^2.
    the vertical height of the shaded area has to be half the height of the radius to the circle.
    I need to find the radius of the circle hence then the diameter.
    Follow Math Help Forum on Facebook and Google+

  5. #5
    Super Member Quacky's Avatar
    Joined
    Nov 2009
    From
    Windsor, South-East England
    Posts
    901
    Quote Originally Posted by heatly View Post
    basically the area i have shaded is 7.87m^2.
    the vertical height of the shaded area has to be half the height of the radius to the circle.
    I need to find the radius of the circle hence then the diameter.
    I understand your method, but the quoted A=\pi~r^2 formula only applies to full circles. It cannot be used to find an area of a segment, sector, etc. Or am I misinterpreting your logic? It seems to me that you are assuming that you can use the '0.5R' as a radius and the given area of the segment of 7.87 to find the radius of the whole circle.
    Follow Math Help Forum on Facebook and Google+

  6. #6
    Member
    Joined
    Apr 2009
    Posts
    87
    ok ,yes i was assuming that-oops.
    Follow Math Help Forum on Facebook and Google+

  7. #7
    Super Member
    earboth's Avatar
    Joined
    Jan 2006
    From
    Germany
    Posts
    5,829
    Thanks
    123
    Quote Originally Posted by heatly View Post
    basically the area i have shaded is 7.87m^2.
    the vertical height of the shaded area has to be half the height of the radius to the circle.
    I need to find the radius of the circle hence then the diameter.
    1. You probably found the correct solution already. If not, here are the steps:

    a) Calculate the value of the central angle of the sector:

    \cos\left(\frac12 \alpha\right=\dfrac{\frac12 R}{R}=\frac12~\implies~\frac12 \alpha = 60^\circ. So the complete central angle is 120.

    b) The shaded area is a segment.

    area_{segment}=area_{sector} - area_{triangle}

    7.87 = \frac13 \cdot \pi R^2 - \frac12 \cdot R \cdot \underbrace{R \cdot \sin(120^\circ)}_{\text{height of triangle}}

    7.87 = \left(\frac13 \pi - \frac14 \sqrt{3} \right)R^2

    Solve for R.

    c) the diameter is 2R.
    Attached Thumbnails Attached Thumbnails Circle Geometry - area of segment.-durchmroehre.png
    Follow Math Help Forum on Facebook and Google+

  8. #8
    Member
    Joined
    Apr 2009
    Posts
    87
    Thanks for that
    Follow Math Help Forum on Facebook and Google+

  9. #9
    Grand Panjandrum
    Joined
    Nov 2005
    From
    someplace
    Posts
    14,972
    Thanks
    4
    If you want anymore help with this create a new thread and this time if you must post a PDF with a scan of the question MAKE SURE IT IS THE RIGHT WAY UP

    CB
