Math Help - Volume by rotating the y axis

  1. #1
    Member
    Joined
    Sep 2008
    From
    California
    Posts
    101

    Question Volume by rotating the y axis

    Hi, here is my problem: Find the volume formed by rotating the region enclosed by:
    and with
    about the -axis.
    So I get:
    V=\ 2\pi\int_0^{\sqrt6} (y^3)^2-(6y)^2 dy
    But my answer isn't right. Is this the correct way to set it up?
    Thanks,
    Matt
    Follow Math Help Forum on Facebook and Google+

  2. #2
    Rhymes with Orange Chris L T521's Avatar
    Joined
    May 2008
    From
    Chicago, IL
    Posts
    2,844
    Thanks
    3
    Quote Originally Posted by matt3D View Post
    Hi, here is my problem: Find the volume formed by rotating the region enclosed by:
    and with
    about the -axis.
    So I get:
    V=\ 2\pi\int_0^{\sqrt6} (y^3)^2-(6y)^2 dy
    But my answer isn't right. Is this the correct way to set it up?
    Thanks,
    Matt
    It should be \pi\int_0^{\sqrt{6}}\left[(6y)^2-(y^3)^2\right]\,dy

    Can you see why this is the proper set up?

    --Chris
    Follow Math Help Forum on Facebook and Google+

  3. #3
    Member
    Joined
    Sep 2008
    From
    California
    Posts
    101
    Oh okay, I think I see. This is the disk method right? So it's the top function minus the bottom right...? I think I was getting confused with the shell method... hehe
    Here is a picture of the graph I did in mathematica:
    Follow Math Help Forum on Facebook and Google+

  4. #4
    Rhymes with Orange Chris L T521's Avatar
    Joined
    May 2008
    From
    Chicago, IL
    Posts
    2,844
    Thanks
    3
    Quote Originally Posted by matt3D View Post
    Oh okay, I think I see. This is the disk method right? So it's the top function minus the bottom right...? I think I was getting confused with the shell method... hehe
    Here is a picture of the graph I did in mathematica:
    You have the right idea! Keep in mind, though, that the horizontal refers to values of y, not x. So you would take the top curve x=6y, square it, and subtract it from the square of the lower curve x=y^3

    Is it clearer now on why the volume [using the washer method] would be \pi\int_0^{\sqrt{6}}\left[(6y)^2-(y^3)^2\right]\,dy?

    --Chris
    Follow Math Help Forum on Facebook and Google+

  5. #5
    Member
    Joined
    Sep 2008
    From
    California
    Posts
    101

    Question

    Okay, I think I understand where you're coming from. What do you mean exactly when you said, "that the horizontal refers to values of y, not x." So when I have a problem that says rotate about the y axis, the limits are referring to y correct? But what about something like this:
    Find the volume of the solid obtained by rotating the region bounded by the given curves about the specified axis.
    about the y-axis

    So would I use the washer method and integrate from 0 to 1?
    Follow Math Help Forum on Facebook and Google+

  6. #6
    Rhymes with Orange Chris L T521's Avatar
    Joined
    May 2008
    From
    Chicago, IL
    Posts
    2,844
    Thanks
    3
    Quote Originally Posted by matt3D View Post
    Okay, I think I understand where you're coming from. What do you mean exactly when you said, "that the horizontal refers to values of y, not x."

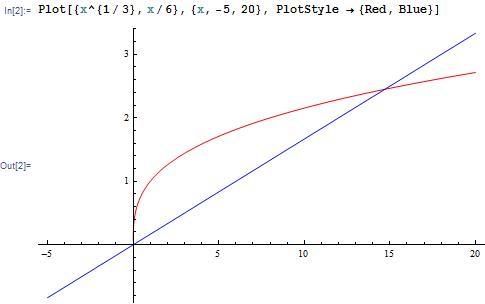

    According to your graph, the horizontal values were the y values. Otherwise it would look like this if you were looking at it from the standard cartesian system:



    So when I have a problem that says rotate about the y axis, the limits are referring to y correct? But what about something like this:
    Find the volume of the solid obtained by rotating the region bounded by the given curves about the specified axis.
    about the y-axis

    So would I use the washer method and integrate from 0 to 1?
    Get these in terms of y:

    y=x^2\implies x=\sqrt{y}

    So, in terms of y, R(y)=3 and r(y)=\sqrt{y}, and its being integrated from 0 to 9. [Since at x=3, y=9]

    So the integral here would be \pi\int_0^9\left[(3)^2-(\sqrt{y})^2\right]\,dy=\pi\int_0^9\left[9-y\right]\,dy

    Does this make sense?

    --Chris
    Follow Math Help Forum on Facebook and Google+

  7. #7
    Member
    Joined
    Sep 2008
    From
    California
    Posts
    101
    Yea, I think so, so you subtract 3-\sqrt{y} because you do the right function minus the left and square both. But how will it look on a graph, what portion gets thrown around. I couldn't figure out how to plot a straight line for x=3 so I just drew it in photoshop.
    Follow Math Help Forum on Facebook and Google+

  8. #8
    Rhymes with Orange Chris L T521's Avatar
    Joined
    May 2008
    From
    Chicago, IL
    Posts
    2,844
    Thanks
    3
    Quote Originally Posted by matt3D View Post
    Yea, I think so, so you subtract 3-\sqrt{y} because you do the right function minus the left and square both. But how will it look on a graph, what portion gets thrown around. I couldn't figure out how to plot a straight line for x=3 so I just drew it in photoshop.

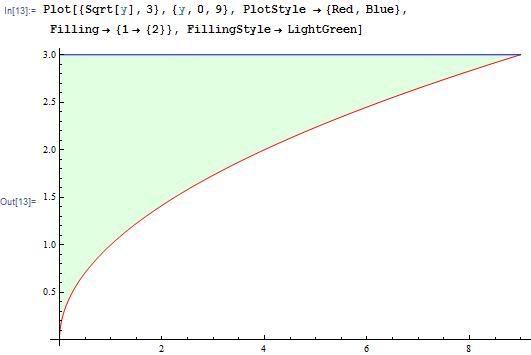

    The light green shaded region is what were are dealing with here:



    Since we graphed the functions as x=f(y), the horizontal here represents the y axis and the vertical represents the x axis.

    So here, we have the top function as x=3, and the bottom function is x=\sqrt{y}. These two functions intersect at y=9

    Since we are revolving it about the y axis [horizontal], our volume integral would be \pi\int_0^9\left[(3)^2-(\sqrt{y})^2\right]\,dy=\pi\int_0^9\left(9-y\right)\,dy

    Does this make sense?

    --Chris
    Follow Math Help Forum on Facebook and Google+

  9. #9
    Member
    Joined
    Sep 2008
    From
    California
    Posts
    101

    Talking

    OHhhhhhhhhhhhh, thank you! I forgot that you could change the axises around.
