# Step by step for related rates with chain rule?

• Apr 5th 2010, 10:58 PM
Redding1234
Step by step for related rates with chain rule?
I have the following function in terms of time:

$\displaystyle M(t) = \sqrt{x(t)^2 + y(t)^2}$

I know the differentiation with respect to t is:

$\displaystyle M'(t) = \frac{xx' + yy'}{\sqrt{x^2 + y^2}}$

However, I don't know how to do the differentiation to get that answer. I know the chain rule needs to be used, but I don't know exactly how to use it. Could someone please help me understand? My textbook is not as clear as I had hoped, and it unfortunately skips steps.
• Apr 5th 2010, 11:50 PM
Prove It
Quote:

Originally Posted by Redding1234
I have the following function in terms of time:

$\displaystyle M(t) = \sqrt{x(t)^2 + y(t)^2}$

I know the differentiation with respect to t is:

$\displaystyle M'(t) = \frac{xx' + yy'}{\sqrt{x^2 + y^2}}$

However, I don't know how to do the differentiation to get that answer. I know the chain rule needs to be used, but I don't know exactly how to use it. Could someone please help me understand? My textbook is not as clear as I had hoped, and it unfortunately skips steps.

Write the function as

$\displaystyle M(t) = \left\{[x(t)]^2 + [y(t)]^2\right\}^{\frac{1}{2}}$

Now let $\displaystyle u = [x(t)]^2 + [y(t)]^2$ so that $\displaystyle M = u^{\frac{1}{2}}$.

$\displaystyle \frac{dM}{du} = \frac{1}{2}u^{-\frac{1}{2}}$

$\displaystyle = \frac{1}{2\sqrt{[x(t)]^2 + [y(t)]^2}}$.

To find $\displaystyle \frac{du}{dt}$, you will need to use the chain rule on each term.

So $\displaystyle \frac{du}{dt} = 2x(t)x'(t) + 2y(t)y'(t)$.

Therefore

$\displaystyle M'(t) = \frac{du}{dt}\,\frac{dM}{du}$

$\displaystyle = \frac{2x(t)x'(t) + 2y(t)y'(t)}{2\sqrt{[x(t)]^2 + [y(t)]^2}}$

$\displaystyle = \frac{x(t)x'(t) + y(t)y'(t)}{\sqrt{[x(t)]^2 + [y(t)]^2}}$.
• Apr 5th 2010, 11:52 PM
colonelone
Quote:

Originally Posted by Redding1234
I have the following function in terms of time:

$\displaystyle M(t) = \sqrt{x(t)^2 + y(t)^2}$

I know the differentiation with respect to t is:

$\displaystyle M'(t) = \frac{xx' + yy'}{\sqrt{x^2 + y^2}}$

However, I don't know how to do the differentiation to get that answer. I know the chain rule needs to be used, but I don't know exactly how to use it. Could someone please help me understand? My textbook is not as clear as I had hoped, and it unfortunately skips steps.

The derivative of $\displaystyle M(t) = \sqrt{x^2 + y^2}$ is $\displaystyle M'(t) = \frac{1}{\sqrt{x^2 + y^2}}(2x\frac{dx}{dt}+2y\frac{dy}{dt})$

The chain rule treats $\displaystyle M(t) = \sqrt{x^2 + y^2}$ as $\displaystyle \frac{1}{\sqrt{x}}$ then multiplies by the derivative of the inside with respect to t, in this case $\displaystyle (2x\frac{dx}{dt}+2y\frac{dy}{dt})$
• Apr 6th 2010, 06:05 AM
Redding1234
Thanks so much for the replies!

Quote:

Originally Posted by Prove It
To find $\displaystyle \frac{du}{dt}$, you will need to use the chain rule on each term.

So $\displaystyle \frac{du}{dt} = 2x(t)x'(t) + 2y(t)y'(t)$.

I guess the only part I'm hung up on is that. I think I was being thrown by the "dt." Nothing is actually getting differentiated by the "dt" though because we are using implicit differentiation, right?

More explicitly, is this what's going on?

$\displaystyle \frac{du}{dt} = \frac{d}{dt}[x(t)^2 + y(t)^2] = \frac{d}{dx}[x(t)^2 + y(t)^2](\frac{dx}{dt}) + \frac{d}{dy}[x(t)^2 + y(t)^2](\frac{dy}{dt})$

$\displaystyle = [2x(t) + 0]\frac{dx}{dt} + [0 + 2y(t)]\frac{dy}{dt}$

$\displaystyle = 2x(t)\frac{dx}{dt} + 2y(t)\frac{dy}{dt}$.
• Apr 6th 2010, 12:47 PM
tom@ballooncalculus
Quote:

Originally Posted by Redding1234
More explicitly, is this what's going on?

$\displaystyle \frac{du}{dt} = \frac{d}{dt}[x(t)^2 + y(t)^2] = \frac{d}{dx}[x(t)^2 + y(t)^2](\frac{dx}{dt}) + \frac{d}{dy}[x(t)^2 + y(t)^2](\frac{dy}{dt})$

$\displaystyle = [2x(t) + 0]\frac{dx}{dt} + [0 + 2y(t)]\frac{dy}{dt}$

$\displaystyle = 2x(t)\frac{dx}{dt} + 2y(t)\frac{dy}{dt}$.

That's fine if you really want to use the multi-variable chain rule - except it's customary then to write $\displaystyle \frac{\partial}{\partial x}$ and $\displaystyle \frac{\partial}{\partial y}$ instead of $\displaystyle \frac{d}{dx}$ and $\displaystyle \frac{d}{dy}$. However, the sum rule for differentiation allows you to apply the ordinary chain rule term by term, as Prove It was suggesting. So if you wanted to show that more explicitly it would be just...

$\displaystyle \frac{du}{dt} = \frac{d}{dt}[x(t)^2 + y(t)^2] = \frac{d}{dx}x(t)^2(\frac{dx}{dt}) + \frac{d}{dy}y(t)^2(\frac{dy}{dt})$

and from there straight to your last line.

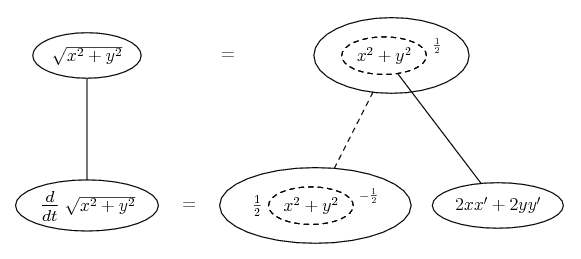

Just in case a picture is of interest...

http://www.ballooncalculus.org/asy/diffChain/param.png

... and, zooming in on the inner derivative...

http://www.ballooncalculus.org/asy/diffChain/paramA.png

... where

http://www.ballooncalculus.org/asy/chain.png

... is the chain rule. Straight continuous lines differentiate downwards (integrate up) with respect to t, and the straight dashed line similarly but with respect to the dashed balloon expression (the inner function of the composite which is subject to the chain rule).
